PWM motor driver Kit


The Kit

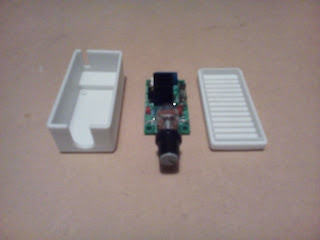

This kit was first published in Diyode Magazine. I bought the kit from Jaycar and downloaded the case 3D printer files from Diyode Magazines web site.

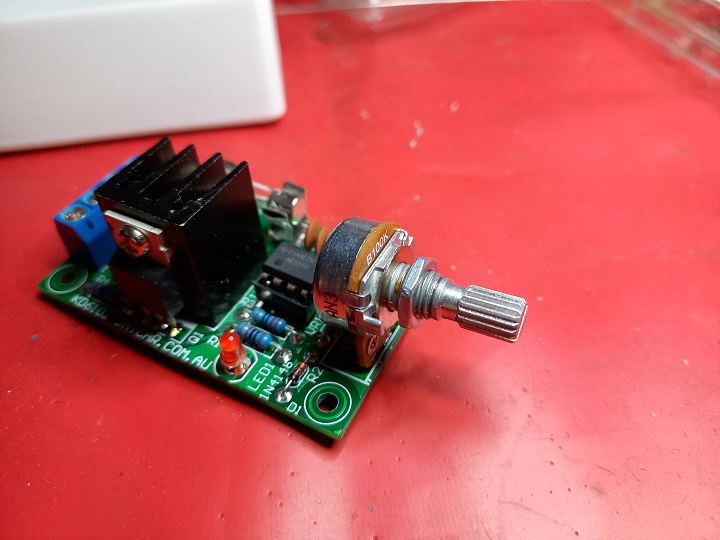

The only problem I had with this kit was that the Pot snapped off when I was placing the board into the case. So I had to replace it.



The following video shows a short test of the unit.
